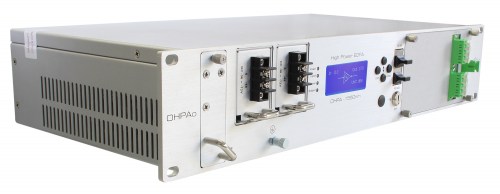

OHPAo-16170 DC

Optical high power amplifier 16 x 17 dBm


  • Optical high-power amplifier for HFC and FTTH networks
  • Extended temperature range for outdoor installation housing
  • 1550 nm optical wavelength
  • ErYb doped double-clad technology
  • 16 optical outputs with 17 dBm optical output power each
  • 19" housing, two RU
  • Settings via front panel or web interface
  • SNMP
  • low power input
  • redundant DC power supplies
  • all connections accessible via the front panel
  • Fans exchangeable via front panel


EAN-Code: 4026187196233 | Order number: 00212084

Kind of amplifier High power EDFA
Number of optical out 16
Output power 17 dBm
Block diagram OHPAo series Data sheet OHPAo Data sheet OHPAo [en] Manual OHPAo series DE Manual OHPAo series EN

Operating instructions for our professional system technology can be found in the ASTRO Expert section. Please register or log in.
