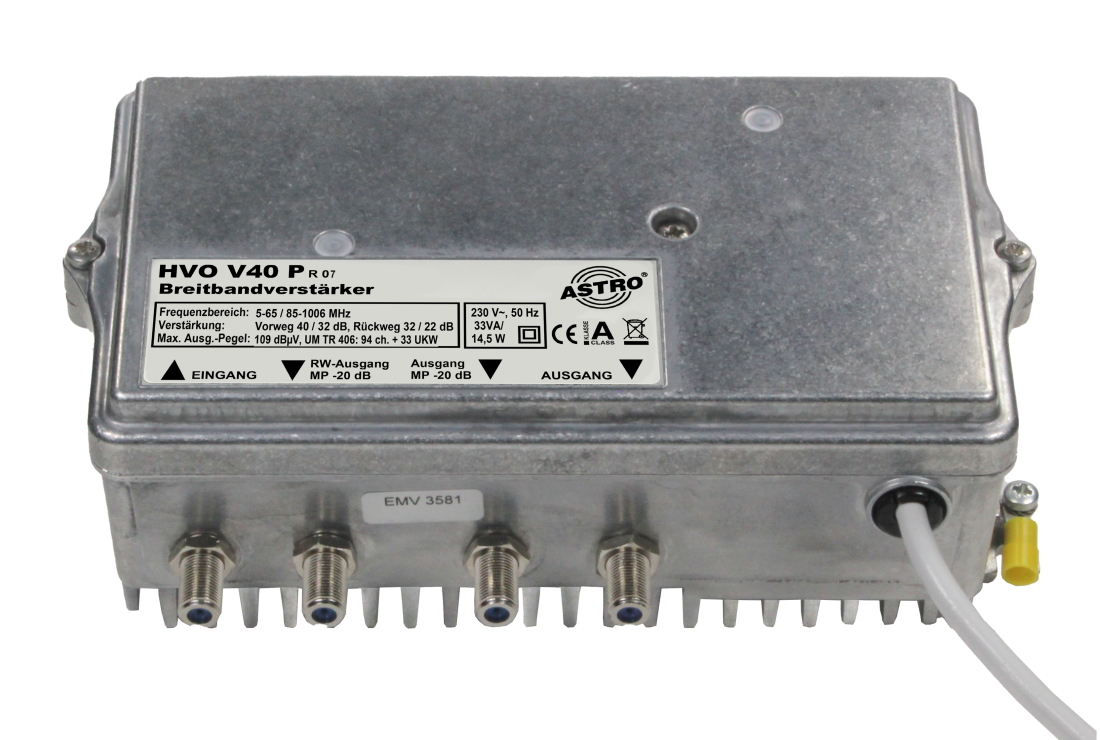

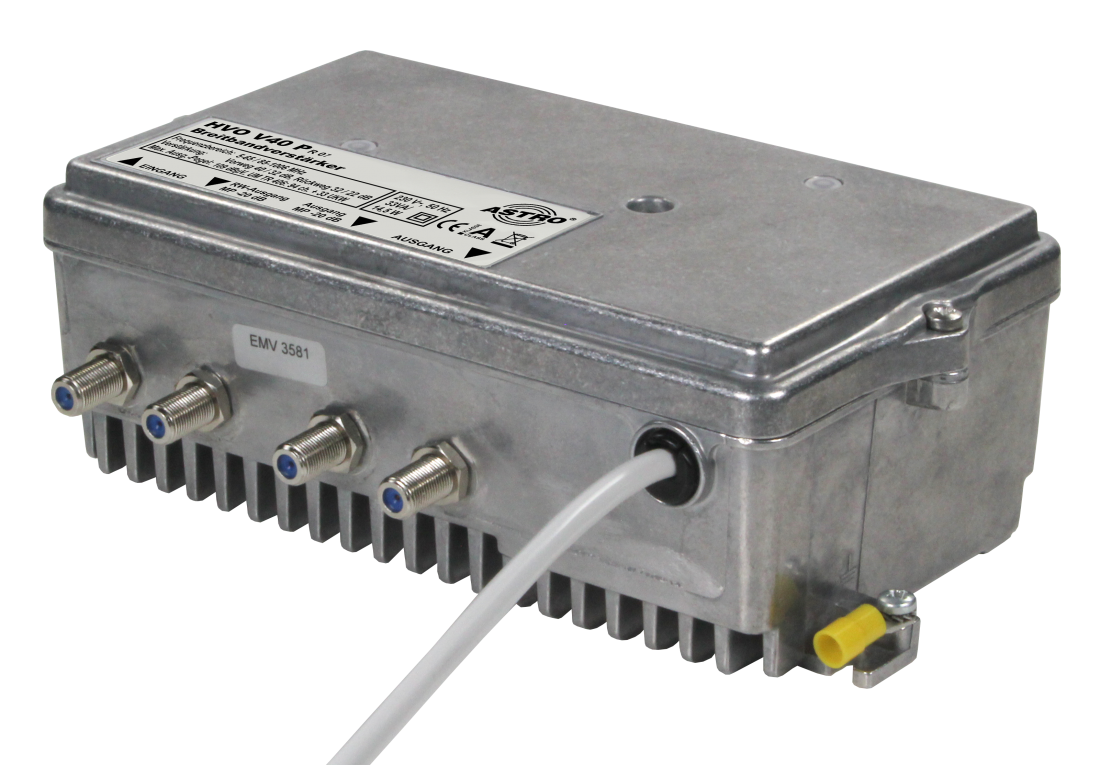

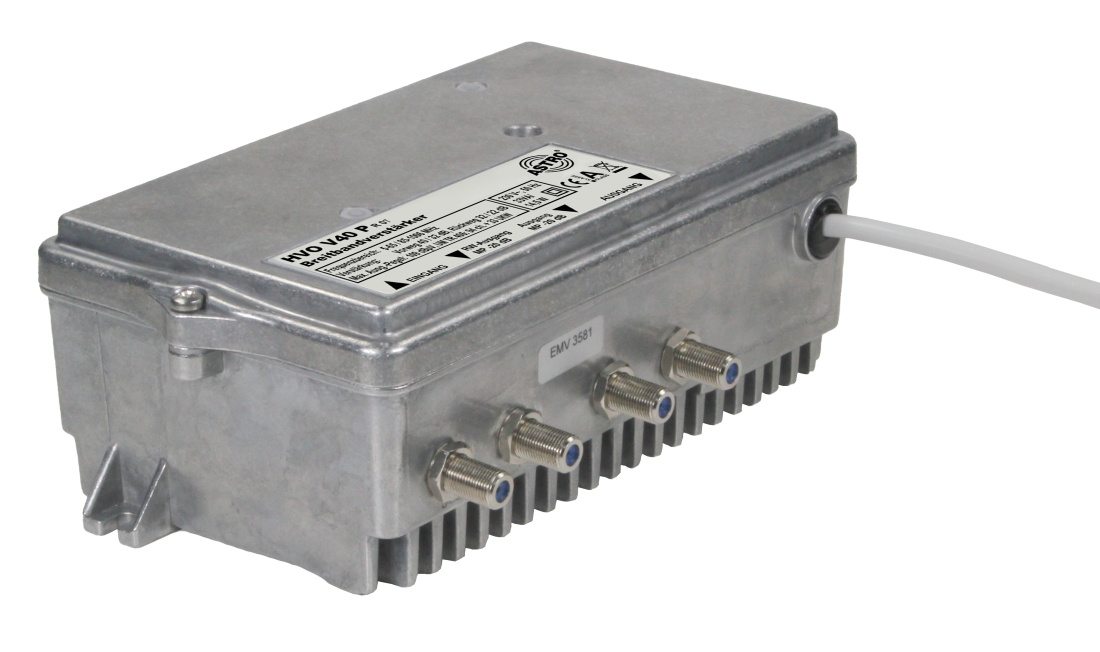

Broadband amplifier

  • Broadband amplifier with active 65 MHz return path
  • high output level at high C/N by push-pull

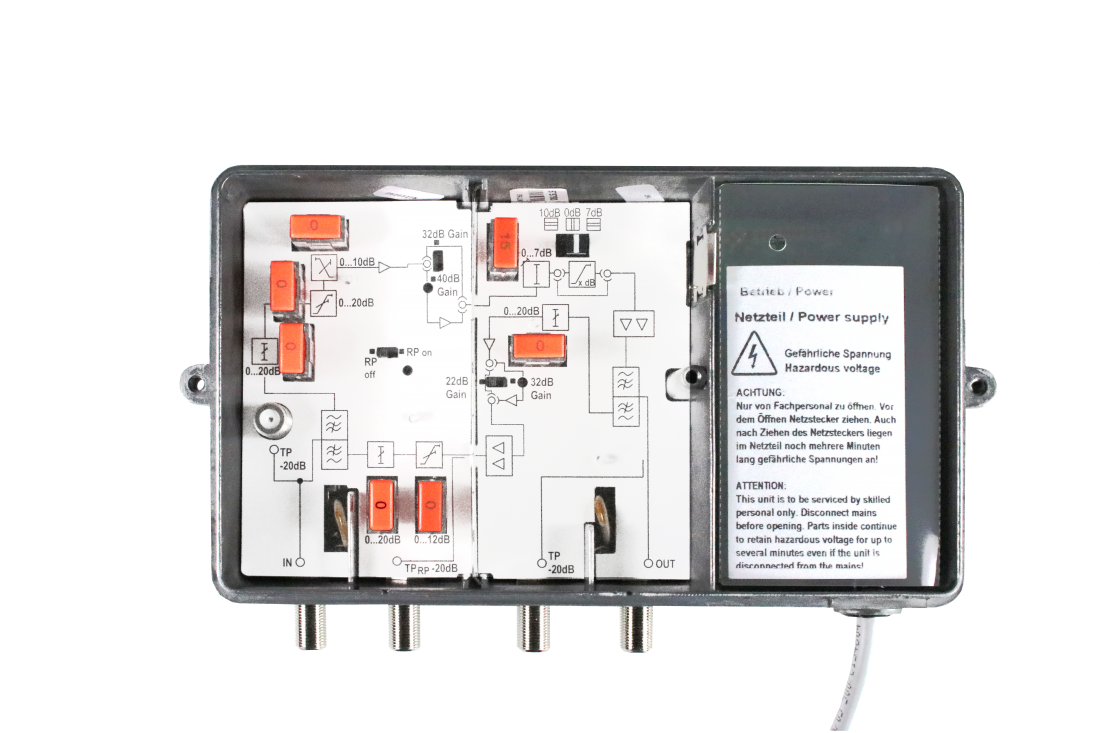

  • Diplex filter and return path amplifier on-board
  • 40 / 32 dB gain in advance (pluggable via jumper)
  • 32 / 22 dB gain in return path (pluggable via jumper)
  • Interstage damping in forward and return path
  • switched signal paths are indicated via LED
  • Configuration via jumpers and pads
  • Measuring points in input and output
  • Advance to 1006 MHz
  • Output level Preliminary 110 dBµV
  • Output level return path 116 / 112 dBµV (2 / 3 transmitter)
  • Unitymedia certified, type class line and distribution amplifiers in cascade
  • released by NetCologne

EAN-Code: 4026187160357 | Order number: 00217400

Amplifier series HV series
Local or remote powered Local powered
Frequency range up to 1006 MHz
Gain > 39 dB
Output level (linear) 106 - 110 dBµV
Approval network operator Unitymedia

Related keywords: 217400, broadband amplifer, Unitymedia certified, NetCologne certified
