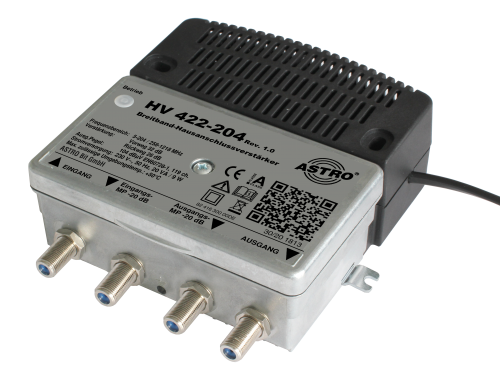

HV 422-204
Universal broadband amplifier
- Broadband amplifier with 204 MHz return path
- Forward path up to 1218 MHz
- Forward path gain 32 dB
- Forward path output level 102 dBμV, with 7dB-Slope 104 dBμV
- Return path gain 26 dB
- Return path output level (204 MHz) 109 dBμV
- Forward path attenuation 0 - 20 dB (Pad)
- Forward path equalizer at the input 0 - 18 dB (Pad)
- Forward path equalizer interstage 0 or 7 dB (Jumper)
- Return path attenuation (input) 0 - 20 dB (Pad)
- Return path attenuation (output) 0 - 20 dB (Pad)
- 20 dB testpoint at the output (forward and return path)
- Configuration via pads and jumpers
EAN-Code: 4026187198800 | Order number: 00217438
| Amplifier series | HV series |
|---|---|
| Local or remote powered | Local powered |
| Frequency range | up to 1218 MHz |
| Gain | 30 - 34 dB |
| Output level (linear) | 98 - 105 dBµV |
Related keywords: 217438, Breitbandverstärker, broadband amplifier, DOCSIS 3.1, HV 422-204, HV 422 204, HV422-204
