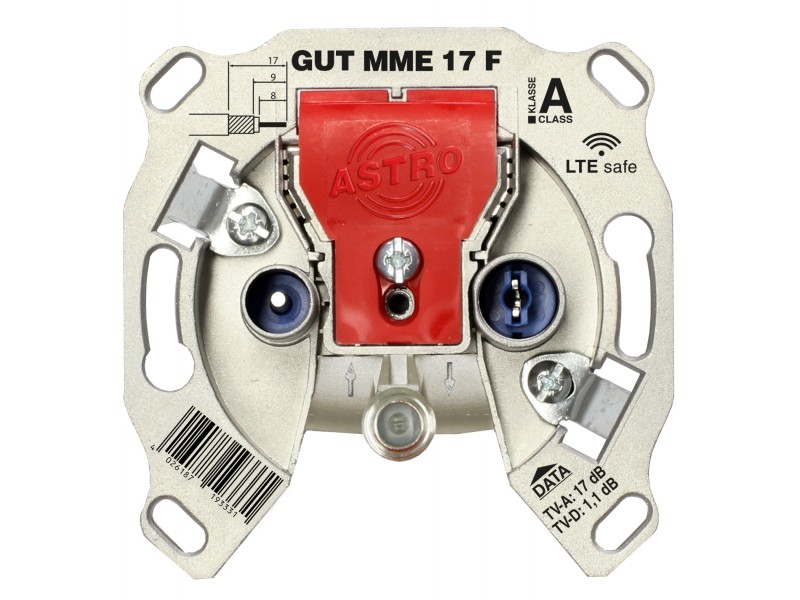

Modem trunkline wall outlet

  • improved EMC properties through compliance with the
    Class A + 10 dB (LTE safe)
  • extended surge protection
  • high irradiation resistance via the radio socket due to FM bandpass filter
  • fast and safe clamping technology even with different cable cross sections
  • Decoupling according to EN 50083 despite low attenuation of special channels S2 and S3
  • Cable kink protection due to rounded housing shape
  • High decoupling between data connection and TV/RF connection prevents interference with TV/radio reception by the cable modem
  • F-connector socket for cable modem prevents unintentional insertion of Ingress by connecting a "second TV
  • 5 - 1218 MHz
  • TV & modem connection attenuation approx. 18 dB
  • Trunk attenuation approx. 1.1 dB
  • Unitymedia certified

EAN-Code: 4026187192402 | Order number: 00541471

Related keywords: 541471, GUT MMX 17 F, GUTMMX 17 F, Modem socket, pass-through socket, multimedia socket, wall outlet, Unitymedia certified, GUT MMX 17 F
