FTTH

Fiber to the customer connection

Transmitters Return path receivers Amplifiers Fibre Nodes Optical communication system Distribution material FTTH Optical Sat-IF technology Optical data technology Accessories
Accessories Connection points Inhouse splitters Optical fibers

28 Products |

Optical interconnection point
APL46

FTTH

Optical interconnection point

  • Plastic lid housing for optical transition point, 4 splices with the option of pure passive function and optical RF receiver for CATV
  • for 4 splices with passive function, up to two optical double LC couplers with fibre tray
  • optical RF receiver OR46-WDx-ALC retrofittable
Optical Fiber Node
OFN46-WDx-ALC

FTTH

Optical interconnection point with RF receiver

  • Plastic lid housing for 4 splices with the option of pure passive function and optical RF receiver for CATV
  • CATV RF converter for up to 1.218 MHz with transparent GPON / XG-PON /XGS-PON / NG-PON / loop option
  • AGC range for CATV -8 dBm … +2 dBm, maximum range -12 dBm .. +2 dBm
  • Plastic housing with or without CATV optical receiver
  • CATV range (pass: 1550 ..1560 nm)
  • RF frequency range 45 - 1218 MHz
  • AC adapter plug-in power supply +12 VDC with ECO, EMC and Product Safety Certificates
  • Very low power consumption ≤ 2 W

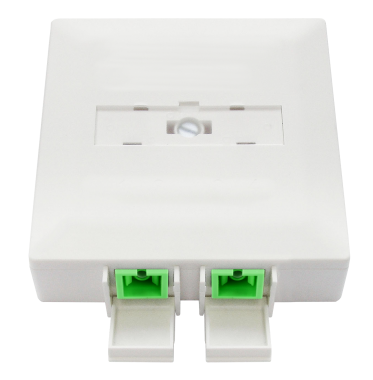

FTTH WA SC/APC

FTTH

FTTH AP

  • fits 55 mm wall socket
  • 2 x SC/APC-Simplex E9/125 and 2 x SC/APC-Simplex ceramic coupling green
  • incl. 2 x SC/APC fibre pigtail E9/125 G657A.1 OS2 and splice holder for 6 splices
  • can be sealed
  • prepared for gas-wasser-stop

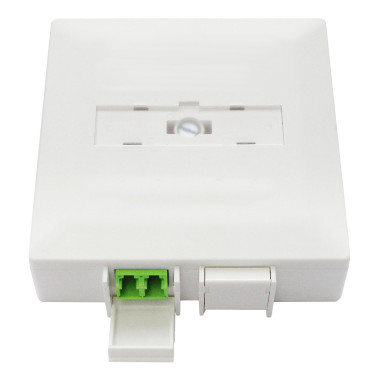

FTTH WA LC/APC

FTTH

FTTH AP

  • fits 55 mm wall sockets
  • 1 x LC/APC Duplex coupling
  • E9/125 G657A. 1OS2 completely populated for crimp splice protection
  • incl. 1 x LC/APC Dupex ceramic coupling green
  • incl. 2 x LC/APC fibre pigtail E9/125 G657A.1 OS2
  • 2 m splice ready
FTTH WA AOF 50

FTTH

FTTH AP

  • fits 55 mm wall socket
  • 2 x LC/APC duplex coupling
  • 4 x LC/APC jack
  • 50 m miniflex cable
  • 2.0 mm
  • white
  • open end
  • cable on paper spoil
FTTH WA AOF 40

FTTH

FTTH AP

  • fits 55 mm wall socket
  • 2 x LC/APC duplex coupling
  • 4 x LC/APC jack
  • 40 m miniflex cable
  • 2.0 mm
  • white
  • open end
  • cable on paper spoil
FTTH WA AOF 30

FTTH

FTTH AP

  • fits 55 mm wall socket
  • 2 x LC/APC duplex coupling
  • 4 x LC/APC jack
  • 30 m miniflex cable
  • 2.0 mm
  • white
  • open end
  • cable on paper spoil
FTTH WA AOF 20

FTTH

FTTH AP

  • fits 55 mm wall socket
  • 2 x LC/APC-duplex coupling
  • 4 x LC/APC-jack
  • 20 m miniflex cable
  • 2.0 mm
  • white
  • open end
  • cable on paper spoil
FTTH SPLICE BOX 48 19´ SC-APC
FTTH Spleißbox 48 19'' SC/APC

FTTH

Splice box in 19 inch format

  • one HU
  • steel, drawer
  • 24 x SC/APC-Duplex E9/125 OS2
  • completely populated (front 24)
  • incl. 24 x SC/APC Duplex ceramic coupling green
  • incl. 48 x SC/APC Fibre pigtail E9/125, 2 m
  • incl. 4 x Splice cassette
  • pod, lid
  • 1 x PG splice ready
FTTH splice box 48 19'' LC/APC
FTTH Spleißbox 48 19'' LC/APC

FTTH

Splice box in 19 inch format

  • one HU
  • steel, drawer
  • 24 x LC/APC Duplex E9/125 OS2
  • completely populated (front 24)
  • incl. 24 x LC/APC Duplex ceramic coupling green
  • incl. 48 x LC/APC Fibre pigtail E9/125, 2 m
  • incl. 4 x Splice cassette
  • pod, lid
  • 1 x PG splice ready
FTTH APL 1 wall housing
FTTH APL 1

FTTH

FTTP AP Wall Box

  • for 12 bibres and crimp
  • with front front panel 6 x SC/LC Duplex/E2000
  • reception of gas-water-stop
  • can be sealed
  • lockable
FTTH APL 2 wall housing
FTTH APL 2

FTTH

FTTP AP Wall Box

  • for 12 bibres and crimp
  • with front front panel 24 x SC/LC Duplex/E2000
  • 4 x PLC-splitter-clip holder
  • reception of gas-water-stop
  • can be sealed
  • lockable
FTTH 02 APL
FTTH 02 APL

FTTH

FTTP AP Wall Box

  • 1 x LC/APC Duplex E9/125 G657A, 1 OS2
  • equipped for crimp splicing protection
  • incl. 1 x LC/APC Duplex ceramic coupling green
  • incl. 2 x LC/APC fibre pigtail E9/125 G657A, 1 OS 2 m, ready for splicing
  • protection class IP 44
FTTH 04 APL
FTTH 04 APL

FTTH

FTTP AP Wall Box

  • 2 x LC/APC-Duplex E9/125 G657A, 1 OS2
  • equipped for crimp splicing protection
  • incl. 2 x LC/APC Duplex ceramic coupling green
  • incl. 4 x LC/APC fibre pigtail E9/125 G657A, 1 OS 2 m, ready for splicing
  • protection class IP 44
FTTH 12 APL
FTTH 12 APL

FTTH

FTTP AP Wall Box

  • 6 x LC/APC Duplex E9/125 G657A, 1 OS2
  • equipped for crimp splicing protection
  • incl. 6 x LC/APC Duplex ceramic coupling green
  • incl. 12 x LC/APC fibre pigtail E9/125 G657A incl. splice holder for 12 splices
  • can be sealed
  • lockable
  • protection class IP 54
