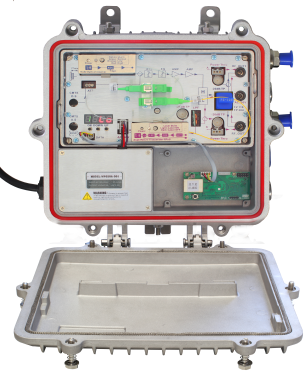

OFN200-FR-1530 AC

Modular optical CATV Node

  • FTTB/FTTC optical Node
  • Downstream reception of CATV signals
  • integrated 3 dBm / 1530 nm upstream transmitter
  • optical input power -7 ... +2 dBm
  • nominal output level >108 dBµV (@ OMI 3,5%)
  • electronically adjustable attenuation and equalizer
  • RF frequency range 5-65 MHz / 87-1006 MHz
  • operational voltage 150 - 265 VAC
  • optical connectors SC/APC

EAN-Code: 4026187194000 | Order number: 00212128

Operating instructions for our professional system technology can be found in the ASTRO Expert section. Please register or log in.

Type of Node Modular Node
Return path With return path
Power supplie(s) One PSU

Related keywords: 212128, optical Node, Fibre Node, CATV Node, FTTB, FTTC, 1530 nm
