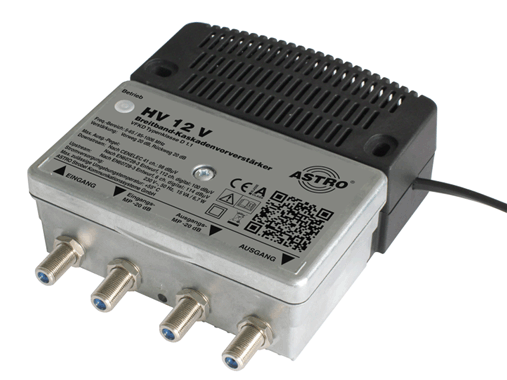

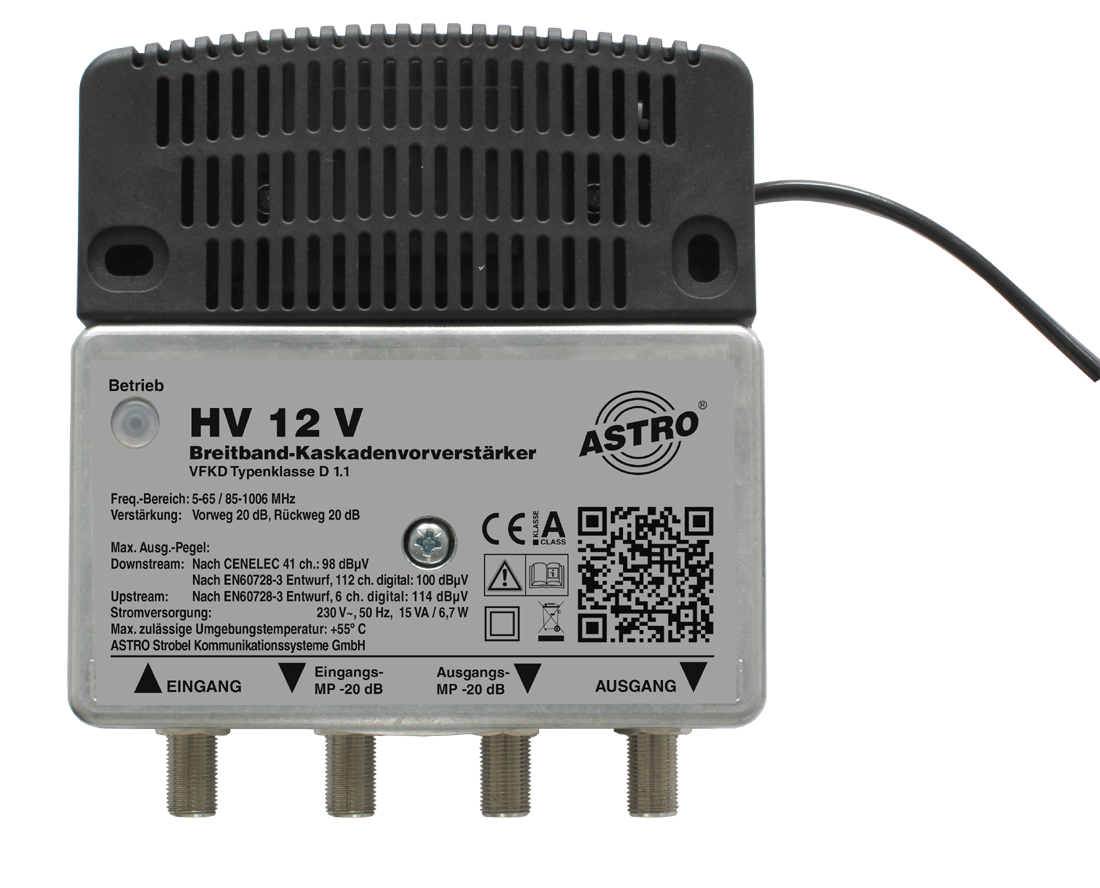

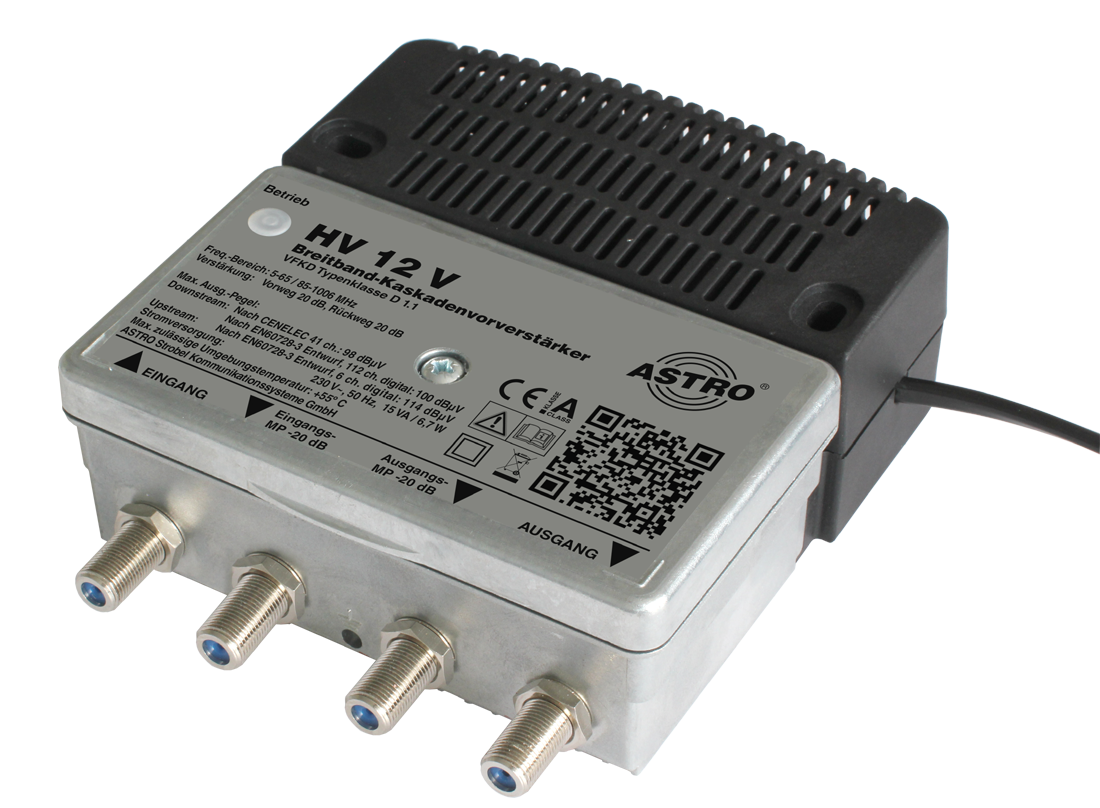

HV 12 V

Broadband Cascade Pre-amplifier

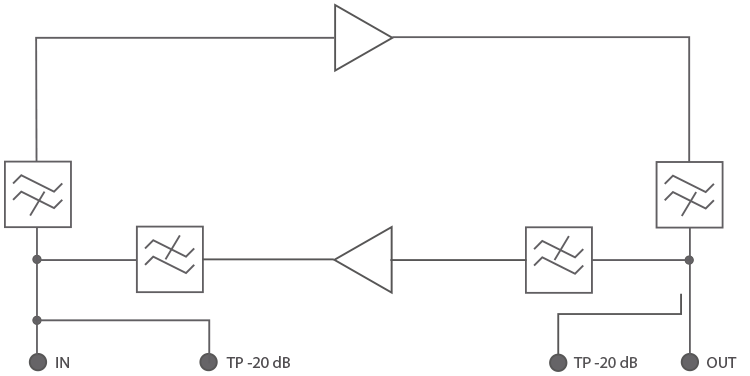

  • active 65 MHz return path
  • forward path to 1006 MHz
  • gain forward path 20 dB
  • output level forward path 100 dBµV
  • gain return path 20 dB
  • output level return path for full system load
  • 20 dB testpoint at input and output
  • Vodafone certified, type class D(1.1)

EAN-Code: 4026187195304 | Order number: 00217024

Amplifier series HV series
Local or remote powered Local powered
Frequency range up to 1006 MHz
Gain 20 - 24 dB
Output level (linear) 98 - 105 dBµV
Approval network operator Vodafone

Related keywords: 217024, Broadband amplifier, cascade amplifier, Vodafone certified
