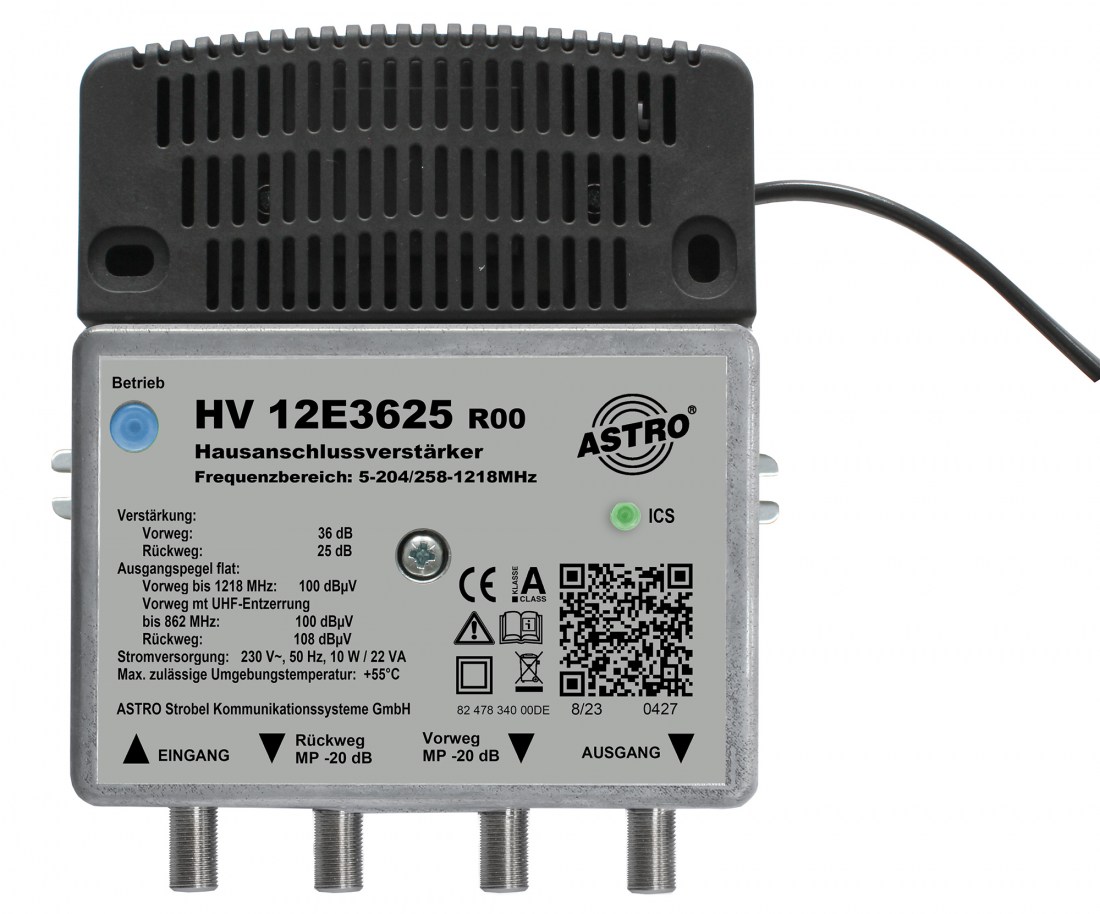

HV 12E3625
Universal broadband amplifier
- Broadband amplifier with 65 MHz return path
- forward path to 1218 MHz
- gain forward path 22 dB
- Interstage slope in forward path pluggable
- output level forward path 100 dBµV
- system equaisation in forward path via jumpers (0-8 dB in 2 dB steps)
- gain return path 20 dB
- output level return path for mid system load
- equalizer forward path interstage switchable 7 dB, 20
- Vodafone certified type class D (1.1)
EAN-Code: 4026187270766 | Order number: 00217102
| Amplifier series | HV series |
|---|---|
| Local or remote powered | Local powered |
| Frequency range | up to 1218 MHz |
| Gain | 20 - 24 dB |
| Output level (linear) | 98 - 105 dBµV |
| Approval network operator | Vodafone |
Related keywords: 217102, HV12E3625, DOCSIS 3.1 amplifier, amplifier, DOCSIS 3.1, active return, Vodafone certified
